Fluorescence state detection (ions, defects) ro_fluor

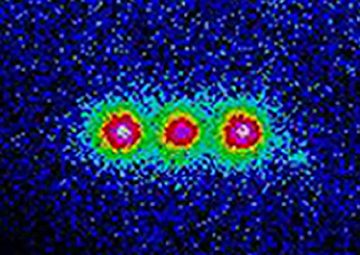

A closed cycling transition scatters photons only when the qubit sits in one logical state; counting them collapses the measurement onto a classical bit. Detectors are photomultipliers, EMCCD (electron-multiplying CCD) cameras, superconducting nanowire single-photon detectors (SNSPDs) or, recently, avalanche photodiodes built into the trap. In use since the earliest trapped-ion demonstrations (1995), unchanged in principle. Attributes: c = fluorescence readout, non-destructive, mid-circuit capable, ~10⁻⁴ s — 11 µs at 99.931(6)% on ¹⁷¹Yb⁺ with SNSPDs D[617]; e = optical control, detection hardware at room temperature unlike the ion.

The mechanism is photon counting against a dark-count and stray-light background, so the signal is set entirely by how many scattered photons reach a detector: collection numerical aperture (a few percent of 4π), UV transmission, detector quantum efficiency. That last term is where the platform hurts — the cycling transitions are ultraviolet (369.5 nm for Yb⁺), where PMT efficiency is tens of percent and where the 98% system detection efficiencies quoted for SNSPDs do not apply, those being telecom-band figures D[618]. The 2019 record worked because a molybdenum-silicide SNSPD was built specifically for 369.5 nm, letting the experiment stop on a single detection event D[617]. The floor is geometry and efficiency, not atomic physics. Errors are Pauli-like misclassification, except when the dark state leaks out of the cycling transition — a loss channel standard SPAM folds into one number. What moves the floor: higher-NA collection, UV-optimised detectors, and moving the detector onto the trap die.

The reversal matters: on Helios, SPAM sits below the two-qubit gate error (7.9×10⁻⁴) D[97], and logical SPAM in the [[80,48,4]] code is below 8×10⁻⁶ D[105]. Readout dominated ion error budgets a decade ago; not now.

Optical assembly, not a fab layer — high-NA objectives, UV viewports, a detector — aligned per system, so detector variation is a calibration cost, not a yield loss. PMTs and EMCCD/qCMOS cameras come from Hamamatsu and Andor (Oxford Instruments), Hamamatsu the only named vendor for single-photon-sensitivity cameras in this class C[620]. SNSPDs come from a five-vendor merchant base — Single Quantum, ID Quantique, Photon Spot, Quantum Opus, Scontel — none of which has disclosed funding or revenue P[621], each carrying a closed-cycle cryostat that PMT and camera channels do not. Upstream, the single points of failure are shared with the rest of the ion stack: UV lasers (TOPTICA) and Infineon's merchant trap fab P[322]. No ion-readout ECCN exists; the 2024 BIS rule reaches computers and refrigerators, not detectors.

One collection channel per readout zone, not per qubit — Quantinuum's QCCD shuttles ions into dedicated zones, so channel count scales with zones D[97]. That is why this layer has not yet hit a wall: at 10³ qubits, zone readout is demonstrated at 98 ions across 8 zones. At 10⁴ a free-space objective per zone stops being buildable and the answer must be integration — trap-integrated photodiodes D[619] or multiplexed SNSPD arrays, for which a 400,000-pixel row-column camera is the existence proof, at a cost in timing resolution D[339]. At 10⁶ nothing is published. Mid-circuit readout must also keep up with real-time decoding; at 11–100 µs it does.

Serves all three trapped-ion architectures — QCCD, the linear Paul trap with individual laser addressing, and electronic qubit control — and is reused by defect-spin network nodes for optical spin readout. It requires a cycling transition; no competing readout mechanism exists for ions at product scale, dispersive readout being superconducting-specific. The only real choice is detector type, whose switching price is a redesign of the collection optics, not of the processor. In the derived clock — sum of the syndrome round: gate layers + transport + readout + reset — readout has large slack: 100 µs of a 9.7 ms round against 9.0 ms of transport, and a full-width layer is ~55 ms because sorting, transport and cooling dominate D[97], so faster readout buys nothing today. Multiplexed many-zone readout without a linear cost in channels and cryostats remains an empty slot.

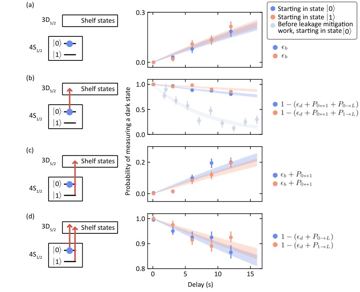

SPAM is measured by preparing known bright and dark states and counting misclassification; Helios's 3.3–4.8×10⁻⁴ is a per-zone range, not one number D[97]. Standard SPAM conflates preparation with measurement and rarely separates leakage or loss from misclassification — quoting discrimination and survival separately, as a 2026 neutral-ytterbium imaging study does (99.89% and 98.80%, not an ion result), is uncommon here P[261]. The headline numbers are also not commensurable: three species, three detectors, three machines. IonQ's Forte SPAM of 0.5% C[99] is an order of magnitude worse than Helios's — plausibly a real architecture difference, long chains on a camera versus zoned detection, but it is a specification page against a preprint.

Not published: the ID Quantique purchase price, so the detector-supply position carries no valuation; a per-channel detector cost from any vendor, and ion-readout revenue separable in Hamamatsu's or Oxford Instruments' reporting; and a UV (369–400 nm) SNSPD system detection efficiency to set against the 98% telecom-band figure.

Who.
| Organisation | Role | Country | What exactly they do with this technology | Evidence |
|---|---|---|---|---|
| Quantinuum | developer | USA/UK | Zoned fluorescence readout on Helios, SPAM 3.3–4.8×10⁻⁴ | D[97] |
| IonQ | developer | USA | Camera readout on Forte chains; owns SNSPD maker ID Quantique | C[99] |
| ID Quantique | supplier | Switzerland | SNSPD detection systems; IonQ-owned since 2025-05-06 | P[622] |
| Hamamatsu Photonics | supplier | Japan | PMTs and the only named single-photon-sensitivity cameras here | C[620] |
| Single Quantum | supplier | Netherlands | Merchant SNSPDs, the main non-IonQ alternative | P[621] |
| MIT Lincoln Laboratory | research | USA | Trap-integrated avalanche photodiodes, 99.92% | D[619] |

Money.
2025-03-03 · IonQ · M&A, ID Quantique (SNSPD detectors) · undisclosed · closed 2025-05-06 P[622]
2025-09-04 · Quantinuum · private round · USD 600 M at USD 10 B pre-money · NVentures, Quanta, QED, JPMorgan · closed G[122]
2026-06-03 · Quantinuum · IPO, Nasdaq QNT · USD 1.68 B gross · cash USD 2.1 B · closed G[123]
2026-07 · IonQ · M&A, SkyWater Technology foundry · USD 1.8 B · closed G[19]

Market & supply chain. Small money attached to large money. IonQ's purchase of ID Quantique gave one of the two QBI Stage-B ion vendors in-house SNSPD supply that Quantinuum, eleQtron and Quantum Art must buy on the merchant market P[622]P[621] — the sharpest concentration event here, though its weight is limited while PMTs and cameras remain adequate. No per-channel price is public. Pays for G2 and G3: every ion error-correction result, Helios's 48 logical qubits included, rests on it. It also gates G6, since photonic interconnects need the same detectors at far higher rates.

IP & standards. No dated patent-family count specific to ion fluorescence readout was found in a named database — no dated fact found. Photon-number-resolving SNSPD operation is covered by US 11,274,962 B2, licensed exclusively to Quantum Opus C[621]. No consortium standard governs ion readout.

Roadmaps & track record. No vendor publishes a standalone readout roadmap; it rides inside system roadmaps — Quantinuum Sol 2027 and Apollo 2029 R[97], IonQ 256 qubits at 99.99% slipped from 2026 to H1 2027 R[132]. Quantinuum delivered Helios on schedule with the SPAM figure it promised; IonQ has published nothing peer-reviewed behind its 0.5% specification, and its detector acquisition has produced no published readout result.

Strategic reading. If UV SNSPDs or trap-integrated photodiodes become standard at 10⁴ zones, IonQ's detector ownership plus its SkyWater fab is a real integration advantage and Hamamatsu loses a niche. If PMTs and cameras stay adequate — which Helios suggests — detector choice stays a commodity decision.

Confirm by end-2027 if IonQ publishes a peer-reviewed SPAM figure; demote the 0.5% claim if it stays a specification page. Best case by 2029: trap-integrated detectors or multiplexed SNSPD arrays make per-zone readout free at 10⁴ zones. Worst case: readout stays one free-space objective per zone and becomes the mechanical limit on zone count. Open questions: does IonQ's owned detector supply produce a measurable SPAM advantage; can UV SNSPD efficiency approach telecom-band figures; do trap-integrated photodiodes reach the tens of µs free-space detection already achieves.
