Microwave–optical transducer (useful efficiency) ic_transducer

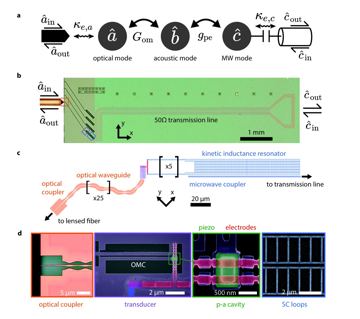

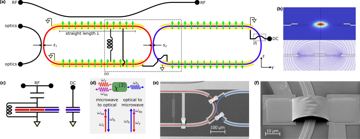

The slot is a device converting an itinerant microwave photon at a transmon's frequency (4–10 GHz) into a telecom photon near 194 THz with the quantum state intact, and back, so two dilution refrigerators can be entangled over ordinary fibre instead of a cryogenic coaxial bridge. Three mechanisms compete, all parametric beamsplitter interactions driven by a strong optical pump: electro-optic in lithium niobate, piezo-optomechanical via a GHz phonon, and magneto-optic via a magnon in yttrium iron garnet. One quantity governs all three: cooperativity C = 4g²/κ₁κ₂ [775] — efficiency rises with C, input-referred added noise falls as N_add ∝ n_th/C. The line runs from cavity optomechanics of 2010–2013 to the first quantum-enabled microwave–optical interface, an electro-optic device at 60 mK with sub-photon added noise (2022, IST Austria) P[775].

Attributes. Carrier affinity: fully fabricated — a lithographic cavity. Characteristic time and determinism: no gate time defined; entanglement through the link is heralded, never deterministic. Readout: none of its own. Mobility: flying — the carrier leaves the refrigerator. Control at placement: electro-optic, pumped optically at millikelvin. Dominant error as the code sees it: loss — heralded photon loss (erasure), plus pump-induced thermal photons creating false heralds. Manufacturing: photonic integrated circuit on superconducting resonators.

Everything hard here follows from one ratio: an optical photon is about 2×10⁴ times more energetic than a microwave one. A 1,550 nm photon carries 0.80 eV — roughly 9,300 K — and must be delivered in quantity to a stage whose cooling budget is 25–30 µW at 20 mK on commercial dilution refrigerators P[311]. Absorbed pump light breaks Cooper pairs and heats the phonon bath, and that heat reappears as thermal occupation in the mode carrying the qubit signal. Push the pump and efficiency rises together with added noise; back off and the device is quantum-limited but converts almost nothing. The trade shows up as duty cycle: the most efficient device in [786]'s comparison — an electro-opto-mechanical converter at 0.38, below the 47% of 2018 P[775] — ran at 5,000 µs repetition and 0.22 kHz bandwidth D[786].

The useful condition is η > 1/2 with N_add ≪ 1 S[775], and the asymmetry matters: loss can be heralded away at the cost of rate, excess noise cannot be removed at all. The code therefore sees erasure plus a rate penalty when the device is good, and irreducible infidelity when it is not. What would move the floor: more nonlinearity per watt dissipated, superconductors tolerating pump light, and protocols that stop demanding determinism — the QphoX/IST claim that heralding plus distillation reaches >99% Bell fidelity with transducers that already exist S[786], against IBM's calculation that 99.7% remote gates at MHz rates need "3 orders of magnitude in added noise, efficiency, and repetition rates" S[306]. That disagreement is the live question.

Each record belongs to a different device; no two can be had at once.

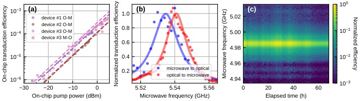

The dominant budget term is pump-induced heating — efficiency per microwatt of pump, the metric [786] argues should replace efficiency, because cooling capacity rather than conversion physics caps channel count.

Every published transducer is a single research die: no wafer-level yield or uniformity data for any platform as of 3 Sep 2026, and no foundry process of record. The candidate stacks — thin-film lithium niobate on insulator, silicon nitride, barium titanate, silicon optomechanical crystals — are the materials of the photonic-IC foundry slot this one requires, where 300 mm capability is proven for another purpose: PsiQuantum's Omega runs barium-titanate switches and superconducting nanowire detectors on GlobalFoundries 300 mm at median detector efficiency 93.4% D[169]. Nobody has put a transducer on that route. Lithium-niobate substrates come from a small, largely Chinese supplier base, refrigerators with optical feedthroughs from Bluefors and Oxford Instruments; the binding constraint is cooling power at 20 mK, which nobody sells more of. Export exposure: the US Bureau of Industry and Security interim final rule of 2024-09-06 controls quantum computers within its qubit-count and C-NOT-error bands, components and cryogenic equipment, but no ECCN names the transducer (mapping unverified below).

Per channel: a pump fibre into the mixing chamber, a microwave line, a filter chain, and photon-counting or heterodyne detection. Fibre carries almost no static heat load — the load is the pump, tens of microwatts to milliwatts per channel against 25–30 µW of cooling at 20 mK P[311]. At 10³ channels that budget is exceeded some 300- to 40,000-fold unless efficiency per microwatt improves comparably; 10⁴ and 10⁶ are not discussable. Heralding needs a round trip to a mid-point detector at ~5 ns per metre, so a 10 m link costs ~100 ns against 6–10 µs repetition D[786]: the transducer, not the speed of light, is the slow element.

The only architecture served is superconducting transmons (Google, IBM, Rigetti, IQM, OQC, USTC/Zhejiang, Fujitsu). It requires the transmon and a photonic-IC foundry able to co-integrate electro-optic or optomechanical structures with superconducting resonators and detectors, and it replaces the cryogenic microwave link between refrigerators — competition, not complement: IBM delivered Loon with c-couplers on 2025-11-12 C[49] and reported two coupled cryogenic cells on 2026-08-19 C[50] while its own researchers publish the analysis showing optical links are three orders away S[306]. The node sits where superconducting qubits meet photonic fabrication, which is why no vendor owns it. Derived clock: transport dominates at about 1.0×10⁻⁵ s (the 6–10 µs repetition D[786]) against 159 ns of gate layers and 282 ns readout, so derived clock = sum of the syndrome round: gate layers + transport + readout + reset runs ~16× the 0.65 µs on-chip round. Neighbouring empty slots: the cryogenic microwave link at multi-refrigerator scale, and the photonic-IC foundry line.

Total efficiency is a calibrated scattering ratio between microwave and optical ports, so the number depends on where the reference planes sit — internal efficiency excludes coupling and is not what a link cares about. Added noise is input-referred with the pump running. The protocols miss duty cycle and thermal recovery time, routinely absent from headline claims, and end-to-end link fidelity with a real qubit at each end, never reported between two refrigerators. Conflicts: [775] lists 47% (2018) as the efficiency record while [786] tabulates 0.38 (2022) with the repetition time that makes it meaningful — both correct, incomparable; the figures reported alongside a duty cycle [786] are the ones to trust. The headline device in the technology-graph record (15% total, 0.16 photons) and the device used to read a qubit (3×10⁻⁶) differ by ~5×10⁴ P[775]D[786].

The per-platform records (Sahu 2022, Higginbotham 2018, Warner 2025, Sonar 2025) come from the tables of review [775], a preprint by authors with no experimental record in the field, not from the primary papers. [306] (IBM) requires three orders of magnitude of improvement in noise, efficiency and repetition rate, while [786] (QphoX/IST) claims >99% Bell fidelity with existing transducer performance through protocol design; the two remain unreconciled. The most recent primary device figures date to 2025. The title, authors, publication date and measured readout fidelity of the Nature Physics paper on the QphoX–Rigetti–Qblox optical readout are not given in [787], and [790] is paywalled. Not published: the ECCN for microwave-optical transducers under the BIS interim final rule of 2024-09-06; a dated patent-family count from a named database; QphoX's funding after 2024-01; and Nu Quantum's cumulative funding.

Money.

• 2024-01-17 · QphoX · Series A · €8 M · QDNL Participations (lead), EIC Fund, Quantonation, Speedinvest, High-Tech Gründerfonds, Delft Enterprises · cumulative €10 M with a €2 M 2021 seed · closed C[788]
• 2025-05-06 · QphoX, Rigetti and NQCC · Eureka grant (RVO and Innovate UK), 33 months, multi-channel optical readout of a 9-qubit Novera at the NQCC · undisclosed · announced C[789]
• 2025-11-06 · DARPA QBI Stage B · eleven teams, up to $15 M each — no transducer company listed, nor on Stage A · programme · announced fact[65]
• 2025-12-10 · Nu Quantum · Series A · $60 M · National Grid Partners (lead), Gresham House, Morpheus, Amadeus, IQ Capital, Ahren, NSSIF, Sumitomo/Presidio · closed C[781]
• 2026-05-12 · Photonic Inc · final close · $200 M at $2 B, $350 M total · Microsoft among returning investors · closed Pfact[186]
• 2026-06-02 · IBM · commitment · > $10 B over five years, funding the roadmap of 2025-06-10 R[67] · modularity money goes to microwave couplers, not optics · announced C[310]fact

The ledger is the finding: disclosed private capital in transduction as a product is about €10 M, at one company, closed two and a half years ago. Adjacent networking raised six times that in one round without touching conversion, and the largest benchmarking programme in the field funds no transducer team.

Market & supply chain. Nobody sells a transducer; QphoX's modem is a grant-funded research instrument. The enabling market is photonic — lithium-niobate substrates, silicon nitride and barium titanate foundry runs, nanowire detectors, cryogenic feedthroughs — with concentration risk highest in substrates and refrigerators. G6 networking pays first and G4 large-scale fault tolerance is the real prize, since multi-refrigerator scale-out is the only route past a few thousand transmons per fridge; G7 benefits indirectly as fibre replaces coax. G1, G2 and G5 do not pay for it at all, which is why venture money has not arrived.

IP & standards. No dated patent-family count from a named database was obtained (unverified below). No interoperability standard exists for a microwave-optical quantum link; the only fixed interface is the telecom fibre plant and the ITU wavelength grid, which is why serious designs target the C band.

Roadmaps & track record. QphoX (promised 2024-01 · optical readout of a commercial QPU · delivered, Nature Physics 2025-02 C[787]). QphoX–Rigetti–NQCC (promised 2025-05 · multi-channel readout of nine Novera qubits in 33 months, due early 2028 · no public result as of 2026-09-03 C[789]). Nu Quantum (promised · Networking Unit in 2025 · launched 2025-06-12 as a product-prototype, no measured rate or fidelity C[781]fact). IBM (promised 2025-06 · module couplers with Cockatoo in 2027 · Loon delivered 2025-11-12, two coupled cryogenic cells reported 2026-08-19, on schedule C[49]C[50]R[67]). QphoX has done the only thing a customer can inspect, on thin capital; IBM's analysis is credible precisely because IBM has no interest in an optimistic answer; Nu Quantum is well funded but solving the layer above. Nobody has published a dated roadmap to efficiency above one half with sub-photon noise, so 2030 in the technology graph is a placeholder.

Strategic reading. If the slot fills, superconducting vendors escape the single-refrigerator ceiling and microwave couplers become a stopgap; winners are photonic foundries, detector vendors and whoever owns the transducer IP, losers are cryogenic-cabling and very-large-refrigerator suppliers. If it stays empty, winners are the platforms whose carriers are already optical — trapped ions with frequency conversion, silicon T centres, neutral atoms. Bargaining power sits with the QPU vendors: they have an alternative and the suppliers do not.

Confirm if any group publishes one device measured at total efficiency ≥ 5%, added noise ≤ 0.2 photons and duty cycle ≥ 10% simultaneously; if the QphoX–Rigetti–NQCC programme shows ≥ 4 simultaneous optical readout channels; or if heralded entanglement between transmons in two separate refrigerators is measured above 90% Bell fidelity. Demote the slot to "bypassed" if by September 2028 no remote optical Bell pair between transmons exists and IBM's Cockatoo couplers have shipped. Best case by 2029: a four-to-eight-channel module at roughly 10% efficiency, ~0.1 added photons, a few hundred kHz herald rate S[306]S[786]; worst case, single-channel laboratory demonstrations only and the slot still empty in 2030.

Open questions. (1) Does pump power per channel scale sub-linearly, or does the mixing chamber cap channel count at order ten? (2) Is η > 1/2 actually required, or does heralding plus distillation make η ≈ 10⁻² usable — the direct [306] versus [786] disagreement? (3) Which material wins, thin-film lithium niobate for bandwidth or silicon optomechanics for noise? (4) Who pays, given no transducer team in QBI and about €10 M of disclosed private capital? (5) Will a superconducting vendor acquire a transducer team or build in-house? Watch the NQCC multi-channel milestone and IBM's Cockatoo delivery in 2027.
