Homodyne quadrature detection (CV) ro_homodyne

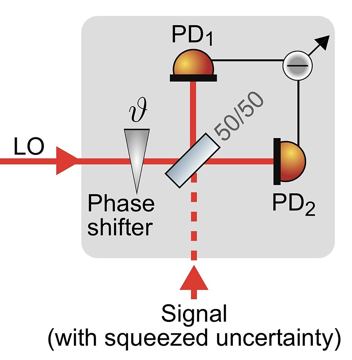

A weak signal mode and a strong LO meet on a 50:50 beamsplitter; subtracting the two photocurrents cancels the LO's classical noise and leaves a signal proportional to the quadrature x̂_θ = x̂ cos θ + p̂ sin θ, θ set by the LO phase. Heterodyne detection measures two conjugate quadratures at once for one extra unit of vacuum noise. It became a computational readout when time-multiplexed CV cluster states were read mode by mode — Tokyo D[635] and DTU D[636], both 2019 — and moved onto chips in Xanadu's Aurora D[173].
Attributes: destructive but mid-circuit (in MBQC the measurement angle is the gate); ~10⁻⁶ s per measurement at the 1 MHz clock; room-temperature electro-optic control; Gaussian-noise errors; photonic-IC fabrication.

Efficiency η acts as loss before an ideal detector: variance V is recorded as ηV + (1−η) in vacuum units, so observing 10 dB of squeezing needs η > 0.90 even for infinite input squeezing S. For GKP states, rescaling by 1/√η turns inefficiency into a Gaussian displacement of variance (1−η)/η: η = 0.99 adds 0.010, a tenth of the 0.106 the Atlas's ~9.75 dB target allows (~0.4 dB); η = 0.95 alone drags 9.75 dB to 8.0 dB S. Electronic-noise clearance C dB is an equivalent efficiency 1 − 10^(−C/10): 20 dB costs 1 %, 28 dB 0.16 % S. LO phase jitter δθ admits the anti-squeezed quadrature, V ≈ V_sq + V_anti·δθ²; at 15 dB anti-squeezing, 1° rms costs as much as 1 % inefficiency S. Bandwidth must exceed the inverse mode duration — Tokyo's 40 ns bins sat under ~100 MHz detectors D[635]. A GKP outcome is binned to the nearest multiple of √π and its parity read as the logical value; q̂, p̂ and q̂+p̂ implement Z, X and Y, and the distance to the bin edge can weight the outer decoder S[637].

Speed is solved three orders of magnitude beyond need; efficiency is not. The one generation-plus-detection chip reaches 72 % D[641], and Aurora states no efficiency, bandwidth or clearance for its channels D[173]. OPA pre-amplification sidesteps the detector: equivalent post-amplifier loss falls from 92.4 % to 0.4 % D[640]. Dominant term: loss upstream — ~56 % in Aurora's heralding paths, over 95 % in its heralded paths, against ~1 % budgets D[173].

Aurora's QPU array is five modules on AIM Photonics' 300 mm silicon-photonic platform — SiN and Si waveguides, germanium photodiodes, carrier-depletion modulators — with the LO envelope shaped by an Exail MXIQER-LN-30 modulator D[173]. Squeezing wants low-loss waveguides, detection strong absorption; Virginia joined both on one chip by heterogeneously integrating photodiodes D[641]. Bandwidth is photodiode capacitance against the amplifier — SiGe electronics at Bristol D[638], a GaAs pHEMT TIA at Ghent D[639]. The parts are coherent-telecom stock; Tokyo's receiver is a 5G photodiode D[640].

Each channel is a photodiode pair, TIA, ADC, phase-controlled LO path and a feed-forward link acting within one clock. In Aurora a reference laser carries the phase that stabilises measurement angles, and a controller informed by algorithm and decoder selects bases every cycle, with single-clock-cycle feed-forward D[173]; DTU locked its LOs by AC demodulation D[636]. Receivers run at room temperature; heralding by Aurora's 36 PNR detectors is a separate chain D[173]. Channels scale linearly with modes per clock — 12 in Aurora; at 10³–10⁴ the ADC and feed-forward budget, not the optics, dominates S.

The Readout slot of the Continuous-variable photonic — GKP architecture, beside single-photon detection. It requires a squeezed-light source (a quadrature to measure) and electro-optic control (LO phase); it provides no downstream edge; single-photon detection replaces it wherever photons are counted. The gap ledger (G-homodyne) created it because SNSPD/TES counting heralds a CV machine but does not compute; Aurora confirms the fix D[173], while GKP preparation still heralds with PNR detectors quoted above 99 % efficiency P[642]. Register: Aurora primary, cell ✅. Borealis does not carry it: its 216 squeezed modes pass a 1-to-16 demultiplexer onto 95 %-efficient TES PNR detectors, no homodyne stated D[270].

Receivers are qualified by shot-noise linearity, clearance and squeezed-light efficiency calibration; systems by nullifier variances below the −3 dB entanglement bound — all 1,500 of DTU's were D[636]. Such figures include detection, like the uncorrected 5.2 dB at 43 GHz D[640]; loss-corrected squeezing and GKP effective squeezing — 0.62 dB for Xanadu's integrated source in the Atlas's record D[174] — are other quantities. Thresholds depend on architecture: static linear optics needs 10.1 dB with all modes GKP, 13.6 dB with one per macronode, lossless S[637]. As of 2026-09-26 Aurora reports path losses but no per-channel efficiency, clearance or phase noise D[173].

The ~9.75 dB target has no primary source; Tzitrin et al. give 10.1 dB, 13.6 dB or ~10 dB depending on architecture. DTU's 2019 arXiv text gives its homodyne efficiency only by reference to earlier work. Not published: Aurora's homodyne bandwidth and feed-forward latency.

Money. No dated financial item specific to homodyne readout was found as of 2026-09-26.

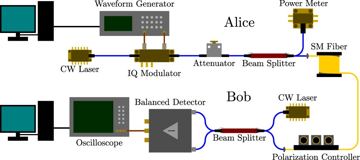

Market & supply chain. No merchant market in computational receivers; the parts are shared with CV key distribution and random-number generation D[639]. It pays into G4 and G6; the G1 sampler does without it.

IP & standards. As of 2026-09-26 no standard for reporting homodyne efficiency or clearance, and no dated patent count specific to it.

Roadmaps & track record. No developer has published a dated homodyne target as of 2026-09-26. Aurora's 35 chips and 86.4 billion modes over 2 h are a scale result, not a readout-quality one D[173].

Strategic reading. If effective squeezing nears threshold, receivers become a CV machine's most numerous active component — one per mode per clock — and value moves to whoever co-integrates them with feed-forward on the photonic die; OPA pre-amplification is the hedge. If not, homodyne stays in key distribution and metrology.

Confirm if, by 2027-12-31, a CV machine publishes per-channel homodyne efficiency ≥ 99 % with ≥ 20 dB clearance, or on-chip GKP effective squeezing exceeds 3 dB; demote if by 2028-06-30 no CV system paper discloses receiver figures while effective squeezing stays below 1 dB.

Open questions. (1) Aurora's per-channel efficiency and clearance? (2) Can photodiodes on a low-loss squeezing platform reach 99 %? (3) Does OPA pre-amplification scale to one locked pump per mode? (4) What LO phase noise does GKP binning tolerate near 10 dB? (5) How much of the gap from 0.62 dB is detection loss?
